SAMx has developed a full range of products in the car industry domain. This new product line allows a PC under WINDOWS 98/2000 to be connected to vehicle computers. The ADVANCE-USB products are based on the Universal Serial Bus (USB) technology, available now on each PC. This allows an easy connection to the device using a 5 meters cable length. The ADVANCE-USB boxes support the CAN/VAN and KL protocols. The J1850 protocol is under development.

For any additional information, contact us.

ADVANCE-USB

- USB interface with the PC
+ Maximum 5 meters cable length between the PC and the ADVANCE-USB box.
+ Peripheral automatically recognized by the software.

- CAN/VAN and KL with ODB diagnostic connector.
- Small, robust and compact.

Three products cover the ADVANCE-USB product range:

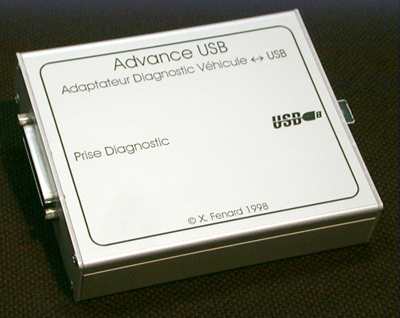

ADVANCE-USB 1:

Click here to see ADVANCE-USB 1 features

- The more flexible version can be customized.
- Size: 125 * 105 * 30 mm.
- Piggy-back board can be added for application specific needs.
- Has 4 Input/Output programmable TTL lines.
- Can measure the car battery voltage.
- Can detect APC.

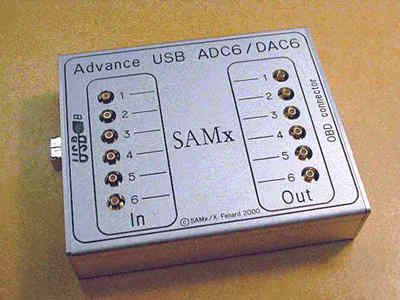

ADVANCE-USB 1 ADC6 / DAC6 :

Click here to see ADVANCE-USB 1 ADC6 / DAC6 features

- Extension of the ADVANCE-USB 1 with a DAC6/ADC6 piggy-back board.
- 6 analog inputs (ADC6).
- 6 analog programmable outputs (DAC6).

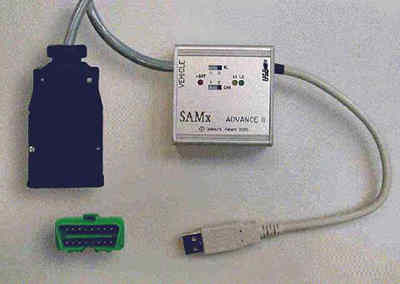

ADVANCE-USB II

Click here to see ADVANCE-USB 2 features

- Optimized version of ADVANCE-USB in a smaller box.
- CAN/VAN and KL protocol are supported.
- Can detect APC.
- Size : 55 * 55 * 20 mm
